DIGITAL TENSION TESTER
@@@DT-04PC@
Features
Measuring range 0.001`100kgf
Automatic air chucking

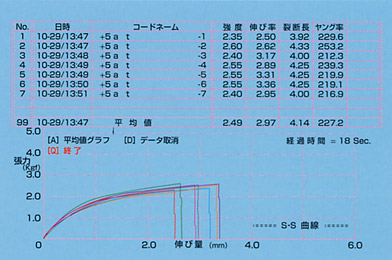

Stress -strain curve indicated
Variable width grips
Data automatic computing function
Auto-span adjustment function
Stress -strain curve indicated
File managing measured data

Outline
Today, you are already familiar with the fact that analyzing measured data is important in the quality controls and the products development,this tester is attached microcomputer (personal computer), so you can variouly analyze data by helps of supporting softwares.

Measurement item
Tensile strength, Elongation percentage, Breaking strength, Young's modulus,Midway elongation percentage, Others
Attachment
Personal computer, Printer









STANDARD SPEC
Tensile load Max 100kgf
Tensile stroke Span range 100170mm move
18090mm move
Precision of elongation 0.01mm
Tension speed 5`500mm/min(1`100mm/min)
Sample width Max 50mm (15, 30, 50)mm
Interface RS232C
Option Measuring software, Fixtures, Recorder
Power source AC100V, 30W
Size, Weight 570x430x170(H)mm,42kg
