Automatic Sample Cutter

Feature

By adding a feeding device to a punching cutter, it can consecutively cut a sample at an optional width.

It can easily make various sizes of test pieces(for tensility, compression and stiffness and other purposes)

Specifications
Cutting size Maximum width:40mm(variable)
Length:250mm
Cutting precision ±0.01mm
Basis weight size 40x250mm
Option Basis weight profile measuring software
(precision balance, personal computer, printer, measuring software)
Supplying air 0.6MPa
Power supply AC100V 30W
Size 500x600x400(H)mm 30kg

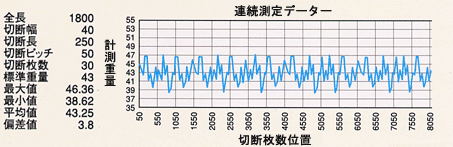

Measuring results of basis weight profile
